Micro Prisms

Manufacturing micro prisms requires special capabilities and unique skills. At Precision Optics Corporation, we can manufacture prisms as small as 0.10 mm in virtually all the designs and configurations that are possible with larger size prisms. Our unique access to technical knowledge and proprietary technologies enables us to design and manufacture all shapes, sizes, and styles of prisms—in a cost-effective manner that fits customers’ budgets.

We carry select sizes of three primary prisms:

If your project demands a more complex prism, our team at Precision Optics welcomes the challenge of solving your design needs.

Standard Right-Angle Prisms

We stock select prism designs to make the order and delivery process fast and efficient. Custom micro prisms are available to suit your requirements.

BK7 Right-Angle Prism
Leg Length and Width	Catalog Item Number
0.10 mm	8531-609-1
0.18 mm	8531-607-#
0.25 mm	8531-608-#
0.30 mm	8531-606-#
0.50 mm	8531-600-#
0.70 mm	8531-601-#
1.0 mm	8531-602-#

# -X = No coating
# -1 = Aluminum coating on hypotenuse

Micro Prism Capabilities:

Micro prisms as small as 0.10 mm
Proprietary technology for high precision in high volumes
100% quality inspection available
Innovative optical design to suit challenging system designs and light paths
Fully manufactured in-house at our U.S. facility
ITAR registered
ISO 9001:2015 and ISO 13485:2016 registered
Approved CE Mark
MDD Approved

Micro Prisms

We carry select sizes of three primary prisms:

Right-Angle Prism (45-45-90)

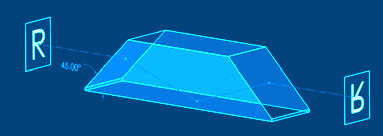

Dove Prism

Penta Prism

If your project demands a more complex prism, our team at Precision Optics welcomes the challenge of solving your design needs.

Standard Right-Angle Prisms

Micro Prism Capabilities:

Need a micro prism for your project?
